Question:
The voltmeter shown in figure (32-E25) reads $18 \mathrm{~V}$ across the $50 \Omega$ resistor. Find the resistance of the voltmeter.

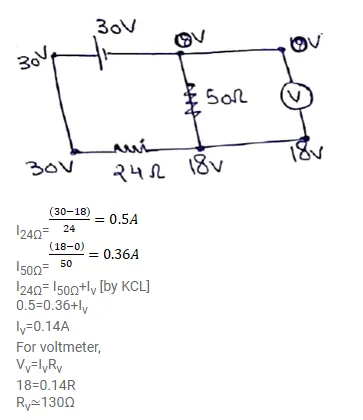

Solution:
