The velocity (v) and time (t) graph of a body in a straight line

Question:

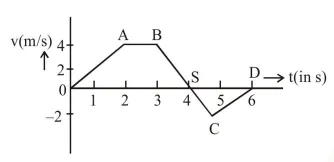

The velocity (v) and time (t) graph of a body in a straight line motion is shown in the figure. The point $\mathrm{S}$ is at $4.333$ seconds. The total distance covered by the body in $6 \mathrm{~s}$ is :

  1. $12 \mathrm{~m}$

  2. $\frac{49}{4} \mathrm{~m}$

  3. $11 \mathrm{~m}$

  4. $\frac{37}{3} \mathrm{~m}$


Correct Option: , 4

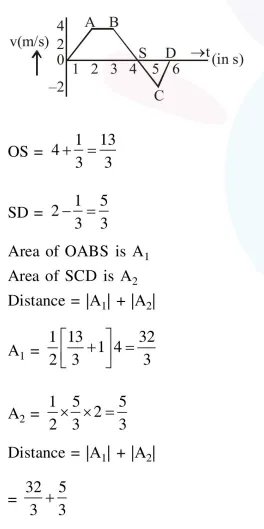

Solution:

$=\frac{37}{3}$
