Question:

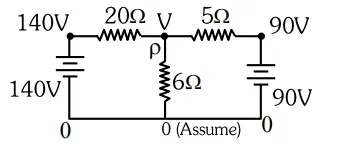

The value of current in the $6 \Omega$ resistance is :

  1. 4A

  2. 8A

  3. 10A

  4. 6A


Correct Option: , 3

Solution:

$\Rightarrow 10 \mathrm{~V}+12 \mathrm{~V}-1080+3 \mathrm{~V}-420=0$

$\Rightarrow \mathrm{V}=60$

$\therefore$ current in $6 \Omega=\frac{\mathrm{V}-0}{6}=10 \mathrm{~A}$

Hence option 3 .
