Question:

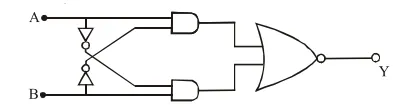

The truth table for the followng logic circuit is:
Correct Option: , 2
Solution:
$y=\overline{(A \bar{B}+\bar{A} B)}$
$\mathrm{y}=\overline{\mathrm{A} \overline{\mathrm{B}}} \cdot \overline{\overline{\mathrm{A}} \mathrm{B}}$
$y=(\overline{\mathrm{A}}+\mathrm{B}) \cdot(\mathrm{A}+\overline{\mathrm{B}})$
$\mathrm{y}=\overline{\mathrm{A}} \cdot \mathrm{A}+\overline{\mathrm{A}} \overline{\mathrm{B}}+\mathrm{A} \cdot \mathrm{B}+\mathrm{B} \overline{\mathrm{B}}$
$\mathrm{y}=\mathrm{AB}+\overline{\mathrm{A}} \overline{\mathrm{B}}$
