The output of the given combination gates

Question:

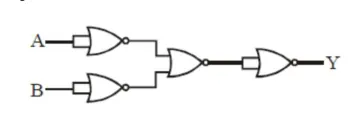

The output of the given combination gates represents :

  1. (1) XOR Gate

  2. (2) NAND Gate

  3. (3) AND Gate

  4. (4) NOR Gate

Correct Option: , 2

Solution:

(2)

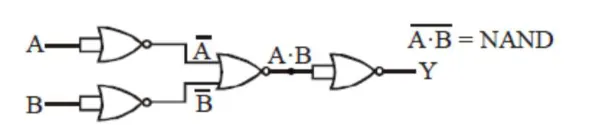

By De Morgan's theorem, we have:
