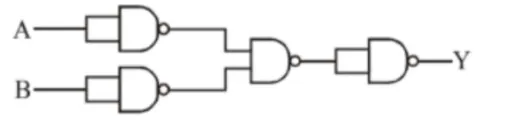

The following logic gate is equivalent to :

Question:

The following logic gate is equivalent to :

  1. (1) NOR Gate

  2. (2) OR Gate

  3. (3) AND Gate

  4. (4) NAND Gate

Correct Option: 1

Solution:

(1)

Truth table for the given logic gate :

The truth table is similar to that of a NOR gate.
