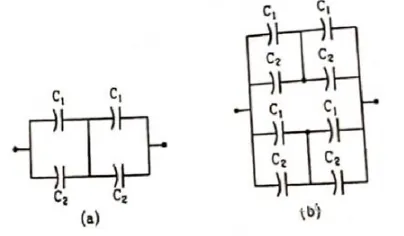

Take C1=4.0μF and C2=6.0μF in figure.

Question:

Take $C_{1}=4.0^{\mu} \mathrm{F}$ and $C_{2}=6.0 \mu \mathrm{F}$ in figure. Calculate the equivalent capacitance of the combination between the points indicated.

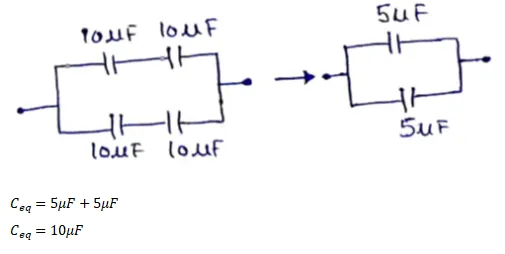

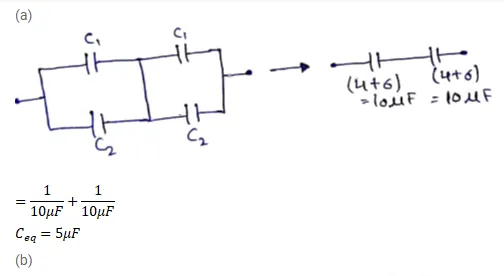

Solution:
