Question:
Solve the following system of inequalities graphically: 2x + y≥ 6, 3x + 4y ≤ 12
Solution:
2x + y≥ 6 … (1)
3x + 4y ≤ 12 … (2)

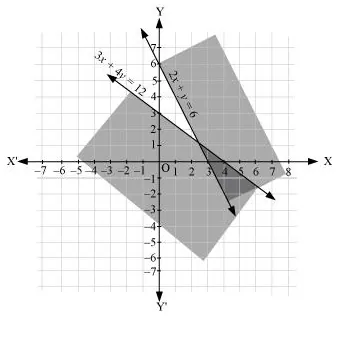

The graph of the lines, 2x + y= 6 and 3x + 4y = 12, are drawn in the figure below.
Inequality (1) represents the region above the line, 2x + y= 6 (including the line 2x + y= 6), and inequality (2) represents the region below the line, 3x + 4y =12 (including the line 3x + 4y =12).
Hence, the solution of the given system of linear inequalities is represented by the common shaded region including the points on the respective lines as follows.
