In series LCR circuit,

Download now India's Best Exam Prepration App Class 8-9-10, JEE & NEET
Video Lectures	Live Sessions
Study Material	Tests
Previous Year Paper	Revision

Video Lectures

Live Sessions

Study Material

Tests

Previous Year Paper

Revision

Question:

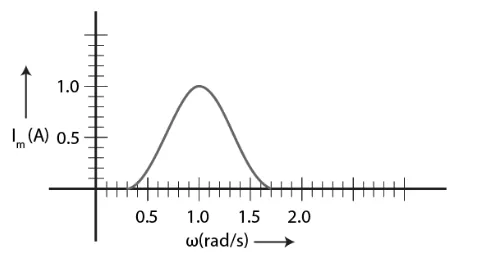

In series LCR circuit, the plot of I max vs ω is shown in Fig 7.3. Find the bandwidth and mark in the figure.

Solution:

Frequency 1 = 0.8 rad/s

Frequency 2 = 1.2 rad/s

The bandwidth = 0.4 rad/s
