If the reading of ammeter A1 in figure (32-E4) is 2.4 A,

Question:

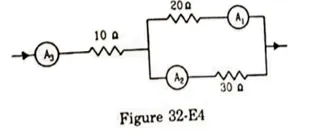

If the reading of ammeter $\mathrm{A}_{1}$ in figure (32-E4) is $2.4 \mathrm{~A}$, what will the ammeters $\mathrm{A}_{2}$ and $\mathrm{A}_{3}$ read? Neglect the resistances of the ammeter.

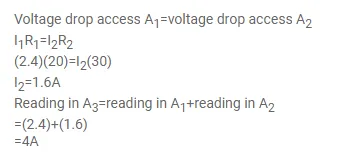

Solution:
